Maverik cockpit:

1- Lateral view of the standard cockpit made for an acrobatical model.

Vista laterale del cockpit realizzato per un modello acrobatico

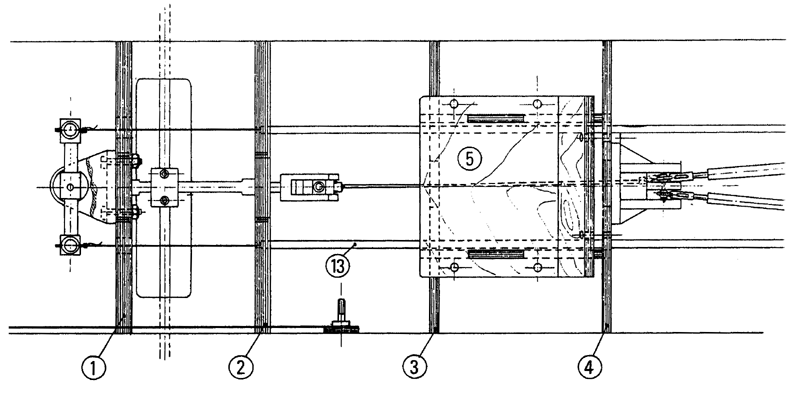

2- Top view of the cockpit for Maverik: the chair and the column support are very simple and just 8 simple plywood plates are required.

Vista superiore della cabina: il sedile ed i supporti per la barra di comando sono molto semplici e richiedono solo 8 semplici ordinate.

3- Frontal view of the cockpit: column, rudder and lever are made in Ergal (aluminum 7075)

Vista frontale del cockpit: la barra di comando, la pedaliera e i leveraggi sono in Ergal.

4- Reference Table:

Tabella di riferimento:

1 Support for rudder and frontal ball bearing 10 mm plywood
2 Support for rear ball bearing 8 mm plywood
3 Support for chair (frontal) 5 mm plywood
4 Support for chair (rear) 4 mm plywood
5 Chair plate base 3 mm plywood
6 Chair plate vertical 3 mm plywood
7 Lateral support (n°2) for chair 4mm plywood
8 Aluminum angle thickness 3 mm with 2 theraed hole for lock the pilot
9 Rudder bar with support
10 Column assembly
11 Elevator lever assembly
12 Elevator bottom pushroad with 2 uniball
13 Bowden (nà2) for rudder
14 Elevator pipe (n°2)
15 Pipe to 90° lever for ailleron
16 Throttle bar with carburator pushroad
